Tryckmaskin Duplo i Saddle | 7.5 Mio

Number of Colours: 20

-

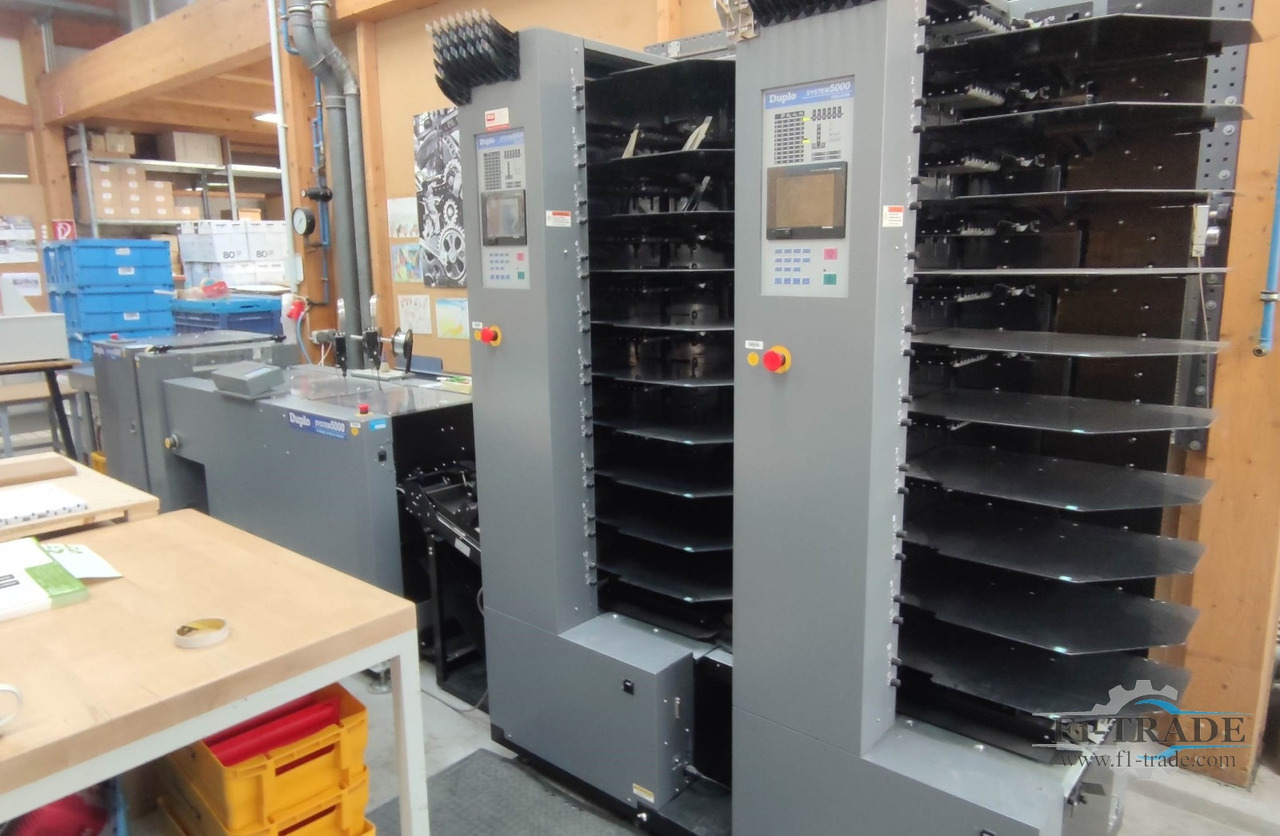

Duplo iSaddle Saddle Stitcher, Used

The Duplo iSaddle is a powerful booklet making system for a wide range of booklet production applications. This versatile machine combines collating, scoring, folding, stitching, and trimming in one efficient process.

Main features:

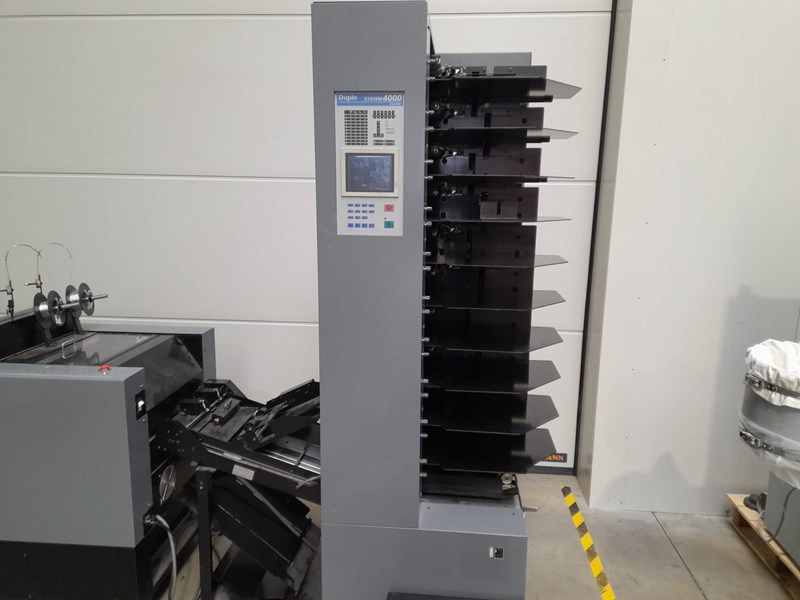

- Two DSC 10 collating towers with a total of 20 stations for high production capacity

- DBMS-F2 scoring and folding unit for precise scoring and folding

- DBMS-S stitching unit with two Hohner stitching heads for reliable binding

- DBMS-T front trimmer for clean face trimming

- DKT-200 head and foot trimming unit for professional finish

- Capable of producing a wide range of booklet sizes and thicknesses

Technical specifications:

- Open format: min. 120 x 210 mm; max. 356 x 610 mm

- Final format: min. 75 x 120 mm; max. 305 x 356 mm

- Feeding capacity: 65 mm per station

- Paper weights: 52-300 g/m²

- Production speed: up to 4,500 booklets per hour

- Power supply: 230 V, 50 Hz, 5.3 A, 980 W

- Dimensions: 4,009 x 3,252 x 1,972 mm (L x W x H)

- Weight: 2,111 kg

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
