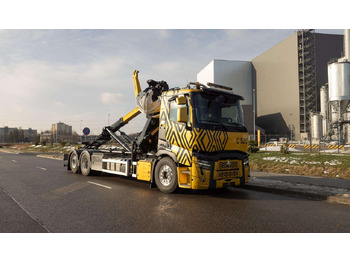

Leasa Renault C 520

Weight range: from 7.5t

-

Front suspension: Independent (pneumatic)

-

Rear suspension: Torsion bar (pneumatic)

-

KMT uses its 20 years of experience to improve the manufacture of truck bodies and the efficiency of the installation of cranes and other lifting equipment. The latest equipment and attention to detail allow us to deliver top quality trucks with PALFINGER lifting equipment.

KMT can offer an anti-corrosive frame coating - metallization - for bodies. This is a technology that allows maximum protection of the bodies against extremely harsh climatic conditions.

Palfinger Epsilon Q150Z84TI handler with Palfinger container closer PHT 24 TEC5.

Manipulator Q150Z84TI:

TECHNICAL DATA:

lifting moment 144 kNm,

boom turning moment of 30 kNm,

boom slewing angle 425°,

Max lifting capacity 4800 kg,

boom reach 8,4m,

working pressure 240 bar,

Number of boom extensions: 2

STANDARD EQUIPMENT:

2 circuit hydraulic system,

4 LED lights fitted,

Emergency stop system (CE),

hydraulic hoses routed inside the telescopic boom,

Crane colour black (RAL 9005), primed with KTL technology,

operating instructions in Lithuanian, English, spare parts catalogue,

manufacturer's certificate,

crane mounting bolt kit,

Crane complies with European Union requirements (CE, EN12999:2009),

4-point rotator clamp,

integrated hours counter with service interval indicator.

OPTIONAL EQUIPMENT:

YSG300A_1 - 300l grab, asymmetric, 6 fingers,

BK115 - rotator G121 (10t),

RX47 - wider hydraulic support legs, 4.7 m,

"Easy Fold - folding the crane without placing the clamp on the ground,

HSCJ - operator's seat with control levers on the side of the manipulator, right hand side,

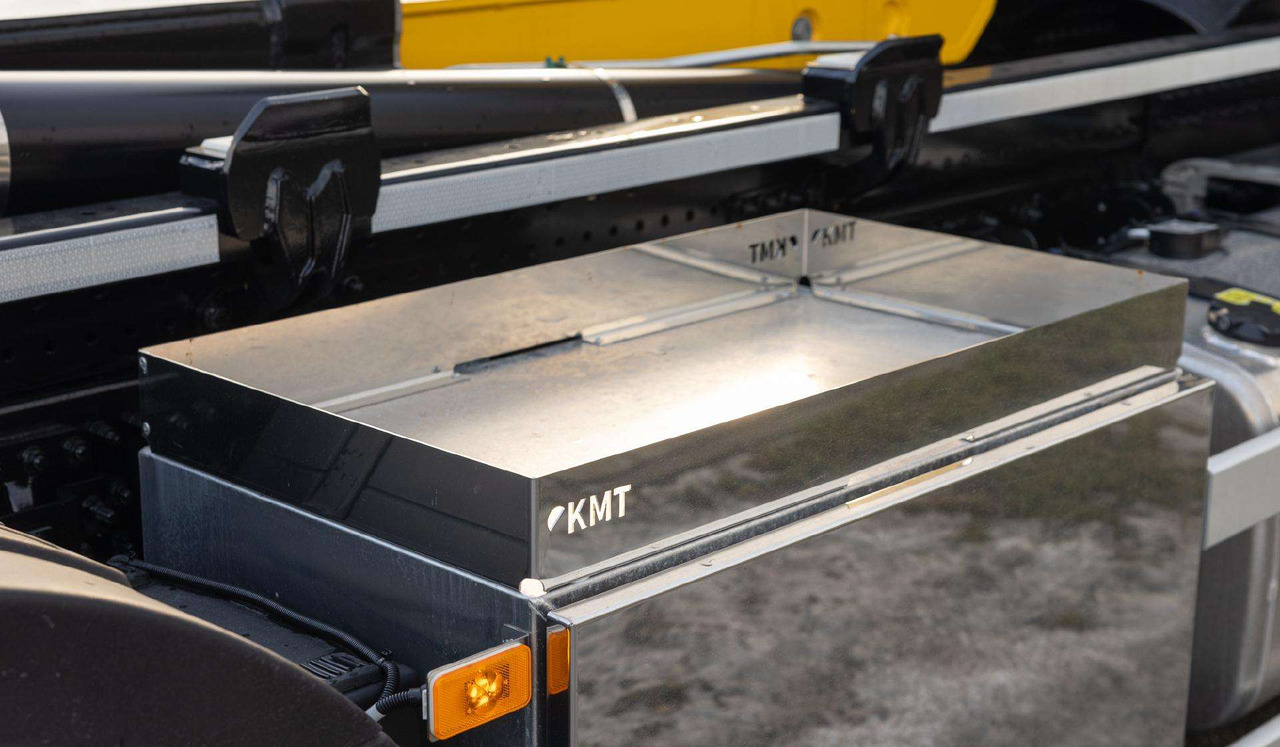

Tool box - stainless steel storage box,

Oil tank - 250 l hydraulic oil tank,

Hydraulic oil cooler,

Pump - 2x70 l/min Parker oil pump,

CERM - safety package according to EN 12999.

Container closer PHT 24 TEC5:

BASE EQUIPMENT:

Maximum lifting capacity 26 t,

telescopic hook,

hook height 1570 mm,

container length: 4250-6500 mm,

Container closing/lowering, dumping modes,

possibility of moving the container on a trailer,

installation weight ~ 2350 kg,

tipping angle: maximum 48 degrees,

width between tipping rollers 1060 mm,

PAD-Touch control system in the driver's cab with 7" touch screen and control lever,

video cameras (3 pcs.) for on-screen monitoring of the operation of the dumpster and the container,

container support pads bolted to the subframe,

operating instructions in Lithuanian, English,

spare parts catalogue in English,

CE declaration of conformity.

OPTIONAL EQUIPMENT:

mechanical hook lock,

Rear hydraulic internal container lock,

automatic container duty cycle,

fast container closing/turning,

anti-friction and sound-absorbing polyamide support pads,

priming and painting in RAL 9005.

Full 12 month warranty

For load-bearing structures 36 months

For more information call +370 699 88049
